How to: Make your own shift box 1g/2g Auto
One cool thing about having an automatic is you can shift faster than a manual, and not loose boost in doing so. Only problem is, you cant really control the shifts. That is, unless you have a shift box. Instead of paying 100+ for one (dont get me wrong, theyre great products), you can make one yourself for 8 bucks!
Supplies:
(2) 2 prong toggle switches
4 wire taps
4 female spade connectors
pliers
electrical tape
4 wires, 3 feet in length or more depending on where you put toggles.
Step 1: Remove your driver side kick panel from the center console.
Step 2: Locate your tcu, and unplug the long connector. Find out what pins are the solenoids, and which are the power sources. Locate the wires you need. On mine, i used pins 2,15,12, and 25, These pins should be the same on all 2 connector tcu's from 93-99. The tcu's with three connectors will be different, refer to pinout chart. The connector will stay unplugged!!
*THESE COLORS ARE FOR A 2G, 1G COLORS WILL VARY*
Pin 2 should be orange. This is shift solenoid "A"
Pin 15 should be gray. This is shift solenoid "B"
Pin 12&25 should be blue with a red stripe. These are your power sources.
Step 3. One at a time, connect your wire splices to each of the 4 wires on the tcu connector.
Step 4. When you find out where to mount your toggles, connect the wires to them as follows. One toggle should have a power wire and a solenoid wire. Remember which wire is solenoid a or b, because if you mess them up you can damage your trans. Mount them in a way you can distinguish which one is solenoid a and b.
Step 5: Shift sequences.
1g:
1st: Solenoid A&B ON
2nd: Solenoid A OFF B ON
3rd: Solenoid A&B OFF
4th/Overdrive: Solenoid A ON B OFF
2g:
1st: Solenoid A&B ON
2nd: Solenoid A ON B OFF
3rd: Solenoid A&B OFF
4th/overdrive: Solenoid A OFF B ON
I am not responsible for damage to your engine or trans due to mis shifting. Take it for an easy cruise to get used to shifting. The shifts will be harsh, even going into reverse because the trans is now shifting at full line pressure, and no this doesnt hurt it. NEVER down shift to 1st while the car is moving.

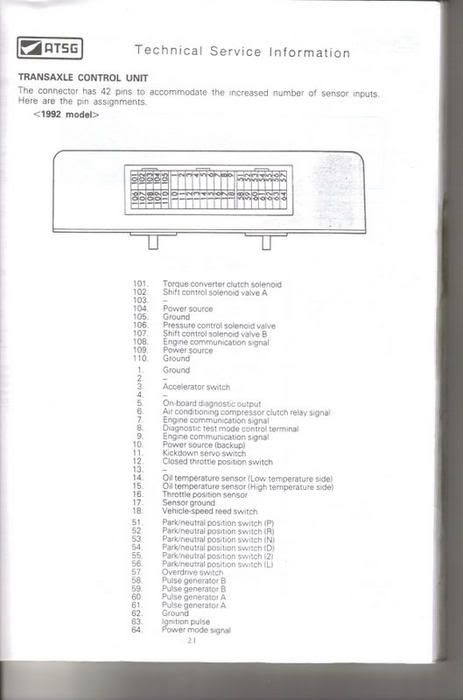

3 plug tcu:

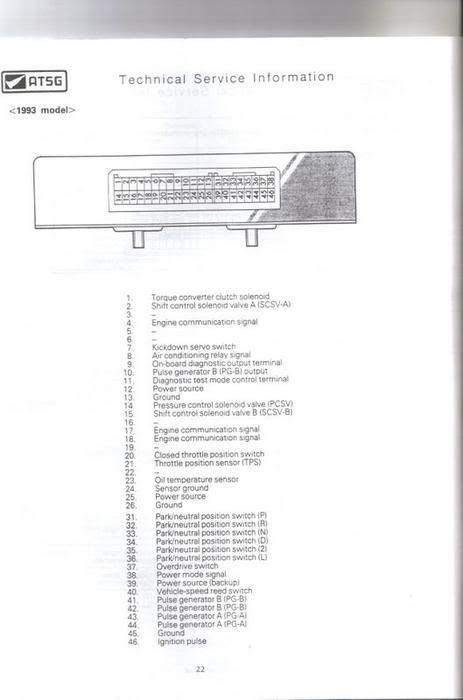

2 plug tcu:

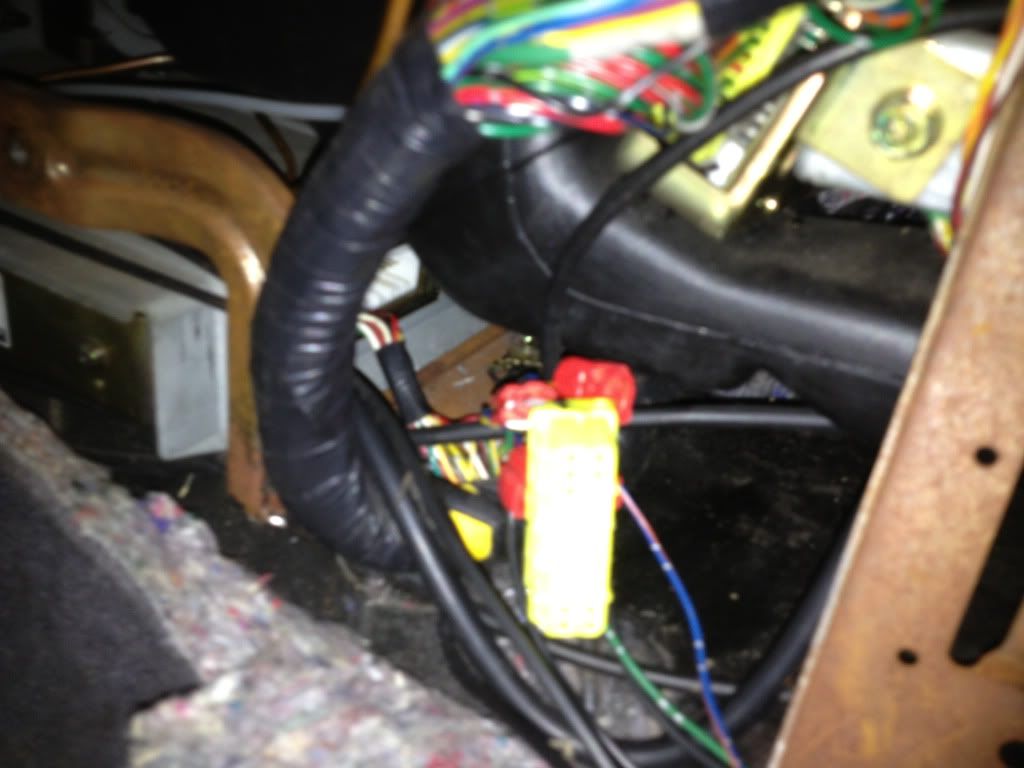

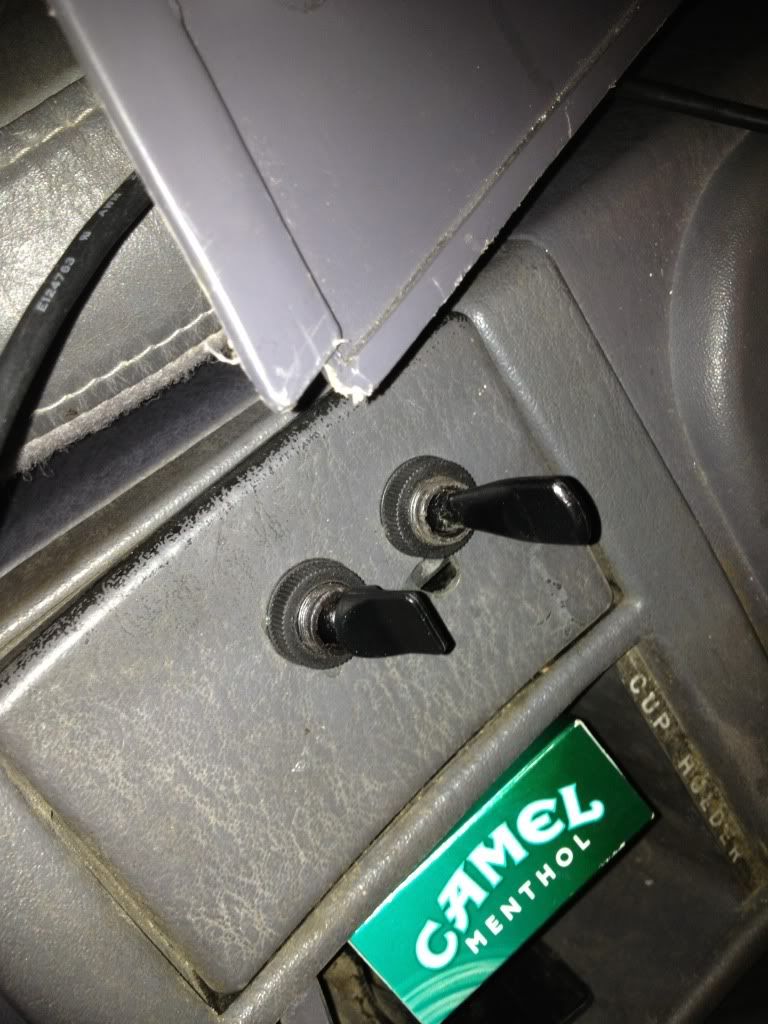

Pics of my setup
Special thanks to Bud92gsx for helping me with the wiring!
